Motorola edge X30 teardown
Access the world's largest database of consumer electronics and semiconductor reverse engineering
摩托罗拉促进摩托罗拉边缘X30手机，具有“最快的速度，最高分辨率的智能手机相机，最响亮的音频和最大胆的显示”。那么索赔背后有哪种技术？TechInsights快速拆解回答了其中一些问题。
Qualcomm Snapdragon 8 Gen 1
As expected, we found the Snapdragon 8 Gen 1 SoC SM8450, which is reportedly fabbed in Samsung’s 4LPE process – which would make this the world's first 4nm process node in the market.
Last year, we examined theQualcomm Snapdragon 888 in the Xiaomi Mi 11 – the 5nm, which put Qualcomm in direct competition with the Apple A14 and the Exynos 2100.
We have several reports in progress on the latest-generation Snapdragon. Watch this space for more information on our analysis.
Design Wins in the motorola edge X30
Some of the notable design wins we have identified in this phone so far include:
- 一个新的Qualcomm Qet7100
- a new PM8450
- a new Qualcomm Wi-Fi 6E SoC WCN6856 – we expect that this will contain the same die as the WCN6850/6851, and are and working to confirm
The partially annotated board shots accompanying this article provide additional design win information:
与同事分享
Related Analysis
Qualcomm Snapdragon 888 in the Xiaomi Mi 11
With their release of the Snapdragon 888, Qualcomm finds itself in competition with other 5 nm offerings - the Apple A14 and the Exynos 2100.

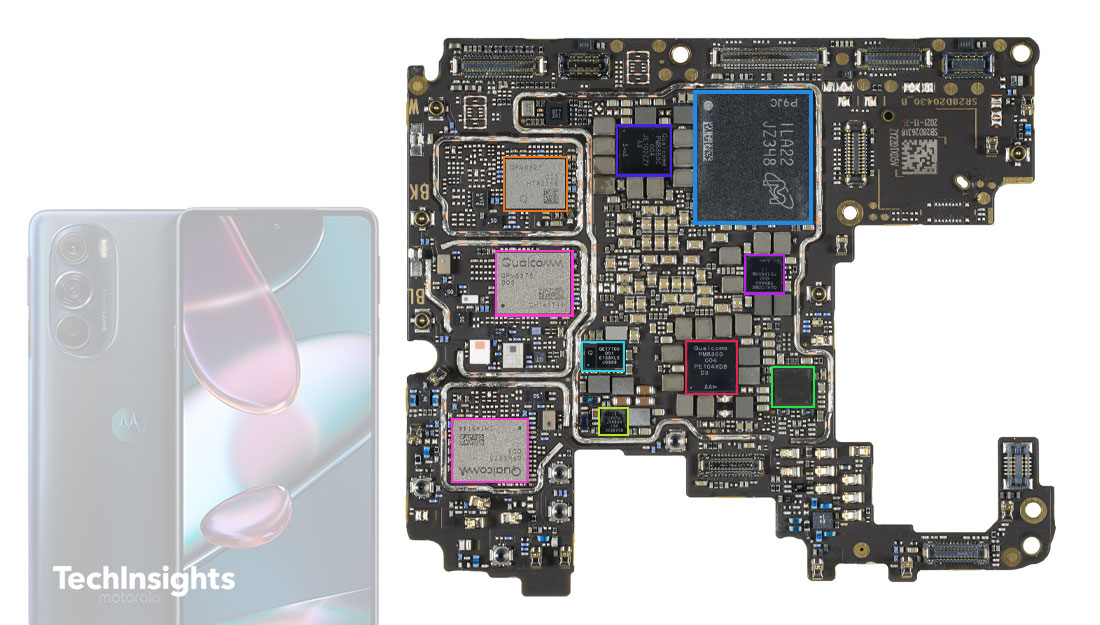

Figure 1. Motorola edge X30 board shot
Qualcomm SDR735
Qualcomm PM8350BH-001
Qualcomm Wi-Fi 6 / 6e WCN6856
Qualcomm QET7100
Qualcomm SMB1393 (x2)
Qualcomm WSA8835
Qualcomm PMR735A
Figure 2. Motorola edge X30 board shot
Qualcomm PM8350C-004
Qualcomm PM8450-000
Qualcomm PM8350-004
Qualcomm QET7100
STMicroelectronics ST54J
Qualcomm WSA8830
Qualcomm QPM6325-003
Qualcomm QPM6375-003 (x2)
我们没有看到什么摩托罗拉边缘X30
到目前为止，我们认为我们可能在这款手机中看到了一些我们没有找到的东西。我们订购了不同版本的手机，所以我们将继续挖掘，但似乎有一些值得注意的流离失所，可能是我们预期的一些技术将被阻止为未来的手机。
- In the Snapdragon 8 Gen 1 chipset, we had expected to find a new RF Transceiver, but so far we have found the same SDR735 that was previously used in Snapdragon 4/7/8 series phones.
- We have not yet found Qualcomm’s QPM6679, which is said to include Qualcomm’s new generation ultraBAW filter technologies.
- Notably, we have not (yet?) seen Skyworks, Avago, or Qorvo parts in this phone. It could be that we have not yet identified them in the model of phone that we have, or it could be that they have not been included. We are working to confirm these details as well.
It seems the Motorola edge+ X30 has a few more tricks up its sleeve. We will continue our analysis of this phone and its components.
